Whole-House Humidifier Installation for Premium North Birmingham Homes

Alabama summers run humid. That part of the climate gets all the attention. But every premium homeowner in Mountain Brook, Vestavia Hills, and Homewood eventually notices the opposite problem — winter air inside the house gets so dry that hardwood floors gap, antique furniture splits at the joints, and family members wake up every January morning with dry sinuses and scratchy throats.

The culprit is heat. Cold outdoor air carries very little moisture. When that air leaks into the home and gets heated to 70 degrees, the relative humidity collapses. A house pulling in 30-degree outdoor air at 80 percent relative humidity and warming it to 70 degrees indoors ends up at roughly 15 to 20 percent relative humidity — well below the 35-to-45-percent range that humans, hardwood, and fine furnishings prefer.

The fix is a whole-house humidifier integrated with the HVAC system. Done right, it disappears into the mechanical room and the homeowner forgets it exists — except every winter morning when the air feels right and the hardwood floors are not telegraphing the weather.

Three configurations cover essentially every premium residential application.

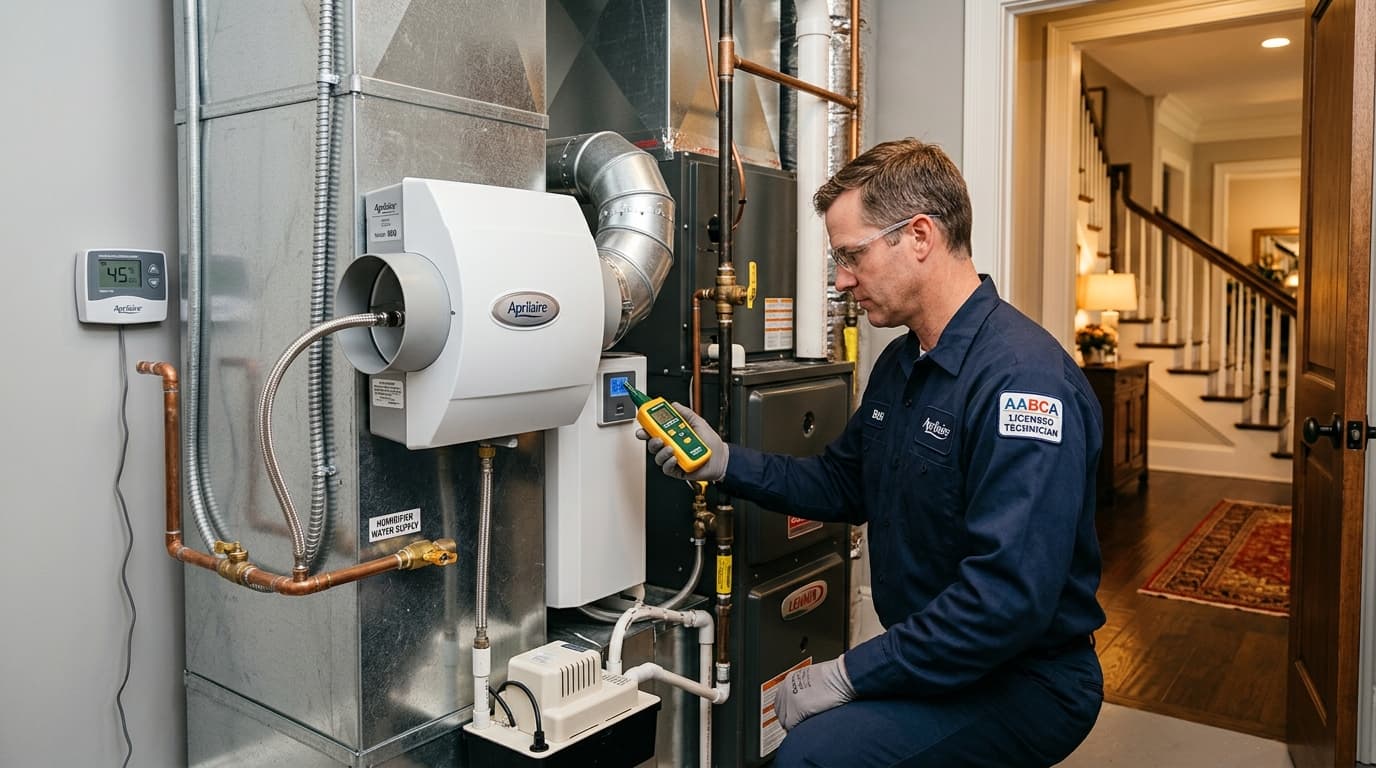

**Bypass humidifiers** are the most common installation. A small duct routes return air across an evaporator pad inside the humidifier cabinet, which sits beside the furnace and is fed by a small water line. The HVAC blower running pulls the air through the pad, picks up moisture, and delivers it through the supply system. Bypass humidifiers — Aprilaire 500 and 600 series, Honeywell HE300 — are quiet, reliable, and inexpensive to maintain. They require the furnace blower to be running, which is fine on premium variable-speed equipment that runs continuously at low fire all winter.

**Fan-powered humidifiers** include their own small fan, so they can produce humidity even when the furnace blower is not running. Aprilaire 700 series, Honeywell HE400. These cost more than bypass models and produce somewhat higher output capacity, which makes them a good choice for larger homes or for systems where the furnace blower does not run continuously.

**Steam humidifiers** are the premium tier of the category. Honeywell HM509, Aprilaire 800, Generalaire 5500. These units boil water electrically and inject true steam into the supply ductwork. Output is precise, fast, and not dependent on the furnace running. Steam humidifiers cost meaningfully more than bypass or fan-powered units and they require dedicated electrical service. For very large homes, for homes with extremely low indoor humidity targets, or for owners who simply want the best technology in the category, steam is the right choice.

We size the humidifier to the home — square footage, ceiling height, building envelope tightness, and winter outdoor-design temperature — and quote the configuration that fits before suggesting an upgrade tier.

A humidifier rated for 12 gallons per day on a 2,400-square-foot home delivers different results than the same unit on a 4,800-square-foot home. The manufacturer ratings are theoretical capacity under standard test conditions. The actual moisture demand of a specific home depends on the building envelope, the existing ductwork, and the winter design conditions.

A leaky building envelope demands more moisture because cold dry outdoor air is constantly infiltrating and replacing the conditioned interior air. A tight envelope — new construction, recently renovated, sealed attic — demands less moisture and tolerates a smaller humidifier. We calculate the moisture load before quoting.

A common mistake is undersizing the humidifier to keep the install cost down. The result is a system that can never quite reach the target humidity on the coldest mornings, and the homeowner concludes the technology does not work. Right-sized equipment from day one prevents that problem.

A fixed-setpoint humidistat that delivers 40 percent relative humidity all winter will cause condensation on windows when the outdoor temperature drops below 10 degrees. That condensation is not a humidifier failure — it is the result of running 40 percent indoor humidity against a 10-degree window pane.

A premium humidifier install uses an automatic humidistat with an outdoor temperature sensor. The control logic reduces the target indoor humidity as outdoor temperature drops, preventing window condensation while maintaining as much comfort humidity as the building envelope can support. Aprilaire 76 and 8910W automatic humidistats, Honeywell H8908 series — these are the controls we specify on premium installs.

Manual humidistats with fixed setpoints still work, but they require homeowner adjustment as the weather changes. On a premium install for a premium home, the automatic control is the right answer.

A whole-house humidifier needs annual maintenance — the same fall service visit as the furnace. The evaporator pad on a bypass or fan-powered model needs replacement once a year. The water solenoid needs inspection. The condensate drain needs flushing. The water filter, if installed, needs replacement.

A neglected humidifier is the most common cause of complaints in the category — pads get clogged with mineral scale, output drops, and the homeowner wonders why the system stopped working. We include humidifier service in our maintenance plan visits so the equipment continues to perform.

Steam humidifiers have a slightly different maintenance profile. The boiling chamber accumulates mineral deposits and needs periodic descaling depending on local water hardness. The Birmingham water supply is moderately hard, so steam systems here typically need a deeper cleaning every two to three years in addition to the annual check.

It will raise indoor relative humidity in winter to the 35-to-45-percent comfort range. It will protect hardwood floors, fine furniture, and millwork from dry-air damage. It will reduce dry sinuses, scratchy throats, and static electricity. It will let homeowners run their heating setpoint a degree or two lower because humidified air feels warmer than dry air at the same temperature.

It will not solve summer humidity problems. Summer humidity is a job for the air conditioning system and, in some cases, a dedicated dehumidifier — the opposite category of equipment. The humidifier is winter-only equipment.

It will not work without water and electricity. Both connections are part of the install, and both should be done correctly the first time. We tie into the cold-water supply with a proper saddle valve or tee with shut-off, run the supply line with the right insulation, and connect the electrical with the correct disconnect.

We install whole-house humidifiers as part of premium HVAC system upgrades and as standalone retrofits. The install is straightforward when done correctly — bypass duct cut in cleanly, water supply tied in to code, condensate routed properly, electrical connected through the right disconnect, humidistat wired and calibrated. None of that is exotic work, but every detail matters, and we do every detail correctly.

Every Lockwell technician is EPA Section 608 certified and licensed through the Alabama Board of Heating, Air Conditioning, and Refrigeration Contractors. Plumbing tie-ins follow Alabama plumbing code. Electrical work follows the National Electrical Code.

Call (205) 206-7030 to schedule a humidifier assessment. We walk the mechanical room, look at the existing furnace and ductwork, ask about the comfort problem the homeowner is trying to solve, and quote the right unit in writing.
